QL-Custom making custom OBDII connectors from cable to cable and Cable to PCB mounted. Since 2013, we had built ourself molds for verious connectors, also including J1939 and J1708 connectors for trucks.We are also dedicated in making Universal OBD and J1939 connector to meet every customers's needs to be compatible different car portions.
Get a Quick Quote

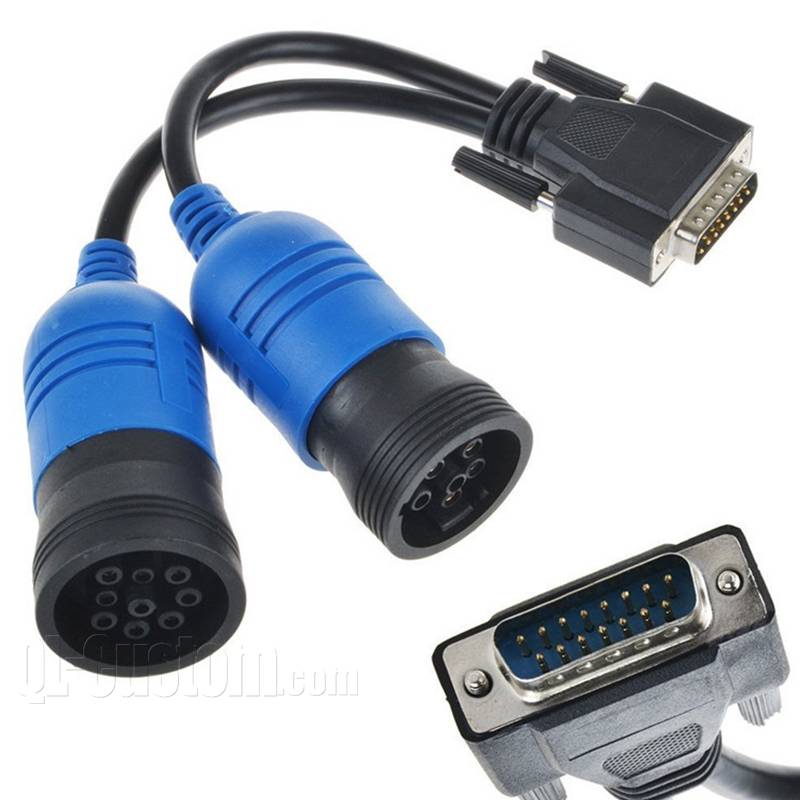

SAEJ1939 is an OBD agreements for Truck and long vehicles. This connector is gathering and diagnostic the vehicles any issues. SAE is a protocol requirement, not only the 1939 and 1708 protocols but also many protocols. But for OBD diagnostic wiring harnesses, these two protocols are common in diagnosing heavy trucks.
Get a Quick Quote
Universal OBD refers to conventional OBD, but our company has changed the practice of conventional OBD and implemented connector sockets that match different installation methods according to customer requirements. This not only saves costs for customers, but also solves their multi-functional needs.
Get a Quick QuoteThe OBDII connector we use uses new material PA when injection molding and adds no less than 15% Fiber. This is in line with the basic specifications for connector plastic molding. In addition, our pin surface treatment has passed the salt spray test. As for cables, we strictly regulate the use of wires according to customer needs. Finally, our OBD wiring harnesses must pass 100% electrical testing to ensure that the products received by customers meet the requirements.
Get a Quick Quote
First of all, QL-Custom strictly follows the OBD agreement to provide customers with the best solution. In terms of cost, because we discovered OBD Cable very early, many molds already exist, which can save customers a lot of money in mold fees. . Because the starting price of OBD's Overmolding tool is at least US$1,600. Secondly, QL-Custom has solved the compatibility issues in OBD and 1939 connector wiring harness. It can make your products better compatible with various automotive interfaces.
The development process of OBD & 1939 connectors and terminals is very long. When we first designed, we had to consider compatibility with Deutsch but not infringement. We thought of many ways, from the selection of contacts to surface treatment. Many experiments were done. In terms of connectors, we have done a lot of work to meet our own requirements for product design from the material of the connector and the design of the number of screw threads in the mold tool, including the orange seal and the fit of the orange seal to Housing. . Therefore, we can achieve customer satisfaction.
OBDII connectors are divided into 12V and 24V. We use a common mold design for 12V and 24V in the design of the OBD connector to achieve precise docking of male and female connectors without affecting coupling.
The 90-degree mounting pin design of the PCB can not only meet the customer's production requirements for SMT mass installation, but also reduce the manual plug-in requirements. Greatly saves welding costs.
We have upgraded and iterated the overall length of the OBD connector so that the use and design of the OBD connector can meet customers' space requirements.
We are alway here to help your wire harness business
Get a Quick Quote
In order to make our customers trust us more, we will continue to update our frequently asked questions and knowledge, so that customers can learn more from our blog. And customers together progress, get a win-win situation.
Read MoreQL-Custom Technology Limited is an ISO9001:2015 professional company that specializes in Custom made Over molding cable assembly and wire harness. If you are looking for the best partner in plastic molding, low pressure molding (PCB over molding) and wiring, then you have finally come to the right place where you will be served by a highly experienced and competent team – leaders in the industry. We manufacture high quality parts that are used in a wide rang...
